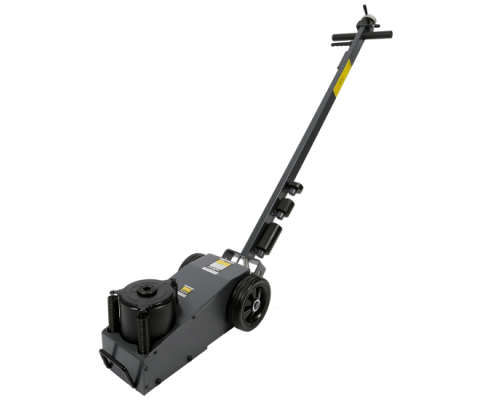

Air Hydraulic Jack 22,000kg

Air Hydraulic Jack 22,000kg

2003T

New product

2 Items

$1,086.80tax incl.

Estimate shipping cost

Submit

More info

  • Safe Working Capacity: 22,000kg
  • Lift Range: 215-456mm
  • Hydraulic Lift: 141mm
  • Adjustable Height: 78mm
  • Handle Length: 1240mm
  • Wheel Diameter: 155mm
  • Air Supply: 90-120psi
  • Interchangeable Saddle Adaptors: 20 50 100mm
  • Overall Dimensions: 525(L) x 265(H) x 215(W)mm
  • Nett Weight: 40kg
  • Note: Use only high quality hydraulic fluid  eg.ISO68
  • Carton: 580(L) x 300(H) x 270(W)mm
  • Gross Weight: 45kg
